Shell forging noising & draw hydraulic press line

Empowering the Defense Industry

With a legacy spanning over six decades, Tianduan Press Co., Ltd., known as Tianduan, has consistently led the charge in hydraulic press technology. Our commitment to pioneering high-tech innovations and advanced solutions has remained unwavering since our inception in 1956. In this comprehensive guide, we delve into the world of shell forging, shell draw, and nosing press, exploring their diverse applications in the defense industry. We will also emphasize the pivotal role played by Tianduan's cutting-edge technology and vast experience.

Tianduan Press Co., Ltd.: A Legacy of Excellence

Tianduan is a renowned industry leader, known for its innovative and reliable hydraulic press solutions. With over six decades of experience, we have consistently pushed the boundaries of technology to meet the evolving needs of the industry. Our commitment to quality, precision, and customer satisfaction has earned us a global reputation for excellence. Today, Tianduan is globally recognized as a leader in developing and manufacturing hydraulic presses and associated technology. Our commitment to delivering high-quality, durable, and innovative machinery is unwavering.

The Importance of Shell Forging Technology

Shell forging is a pivotal manufacturing process with wide-ranging applications across defense industries. It involves shaping metal or other materials into complex and robust hollow shell structures. These shells serve a myriad of purposes, from housing critical explosive materials and in some cases precision instrumentation to providing protection against external forces.

The significance of shell forging technology cannot be overstated, given its vital role in enhancing the capabilities of hydraulic press. Here are some key points on the importance of shell forging technology:

Industrial Usages

Applications in the Defense Industry

The defense industry heavily relies on advanced manufacturing processes like shell forging to produce components for military equipment, vehicles, and armaments. Here are some key applications in which shell forging plays a pivotal role, including specific use cases and the sizes of ammunition shells:

Applications in the Defense Industry

Ammunition Casings: Shell forging is essential in the production of ammunition casings. These casings come in various sizes, including the widely used 105mm, 155mm shells. Such casings house the explosive components of artillery rounds and are vital for the effective operation of heavy artillery.

Diameter: 203mm

Length: Variable depending on the specific shell type.

175mm M107:

Diameter: 155mm

Length: Varies depending on the specific type of shell

(e.g., high-explosive, smoke, illumination, etc.).

155mm M982 Excalibur:

Diameter: 175mm

Length: Approximately 1,875mm (1.875 meters).

155mm Howitzer Shell:

Diameter: 155mm

Length: Approximately 1,220mm (1.22 meters).

152mm D-20 Howitzer Shell:

Diameter: 152mm

Length: Varies based on the type of shell.

152mm Medium Gun Shell:

Diameter: 152mm

Length: Varies depending on the specific shell type.

130mm Field Gun Shell:

Diameter: 130mm

Length: Varies based on the type of shell.

122mm Howitzer Shell:

Diameter: 122mm

Length: Variable depending on the specific type of shell.

140mm Field Artillery Shell:

Diameter: 140mm

Length: Varies based on the type of shell.

105mm Howitzer Shell:

Diameter: 105mm

Length: Varies depending on the specific type of shell.

115mm Field Gun Shell:

Please note that these sizes are approximate, and the actual dimensions of artillery shells may vary based on their specific design and purpose, as well as the manufacturer.

Artillery Systems:

Heavy-duty artillery systems, such as howitzers, self-propelled guns, and field guns, use 155mm shells for long-range precision firing. These shells are capable of delivering a variety of payloads, including high-explosive, smoke, and illumination rounds.

Weapon Systems:

Many weapon systems, from firearms to missile launchers, utilize forged shells to contain ammunition and explosives, maintaining the structural integrity under extreme conditions. For instance, 105mm shells are used in various artillery and tank guns.

Armor and Vehicle Components:

Shell forging is used in creating armored vehicle components, increasing the protection and durability of military vehicles. Tanks, for example, rely on forged components for their hulls and turrets.

Sensors and Electronics Housing:

Defense equipment often requires protective casings for sensitive sensors and electronics. Shell forging technology can create these housings with precision to accommodate equipment like radar systems, guidance systems, and communication devices.

Missile and Rocket Components:

Forging is integral to the manufacturing of missile and rocket components, ensuring that these systems operate reliably and accurately. Various missile systems, including those with 122mm and 300mm calibers, depend on shell forging for their propulsion and guidance components.

Naval and Aircraft Applications:

Shell forging technology extends to the production of components for naval vessels and aircraft. These components can include everything from artillery ammunition for naval guns to parts for aircraft munitions.

Safety and Protection Gear:

Helmets, body armor, and other protective gear for military personnel often incorporate shell-forged components to provide the necessary protection in high-risk situations.

In the defense industry, the reliability and performance of equipment are non-negotiable. Shell forging technology from Tianduan empowers military manufacturers to meet these demands with confidence. Our advanced hydraulic presses are designed to produce components with exceptional precision and durability, contributing to the overall strength and effectiveness of defense systems.

product gallery

Artboard 1-5

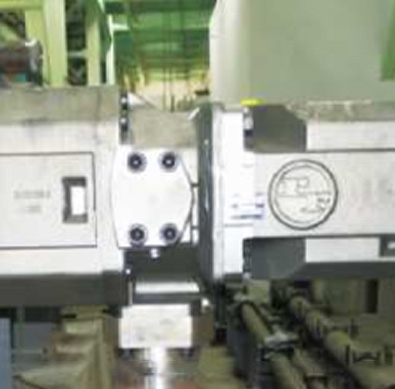

Artboard 1-1

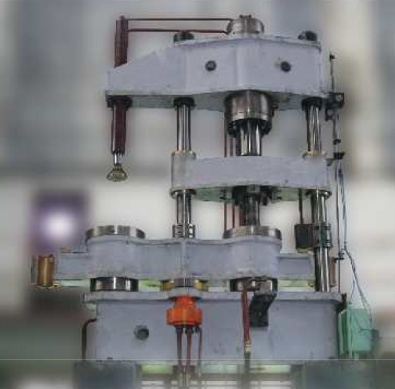

Artboard 1-2

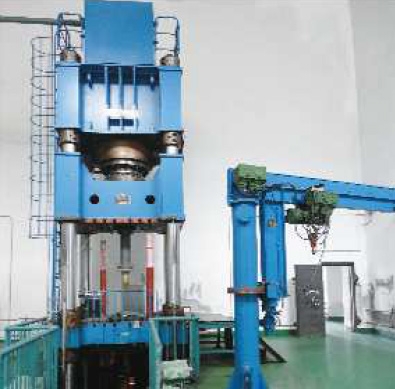

Artboard 1-3

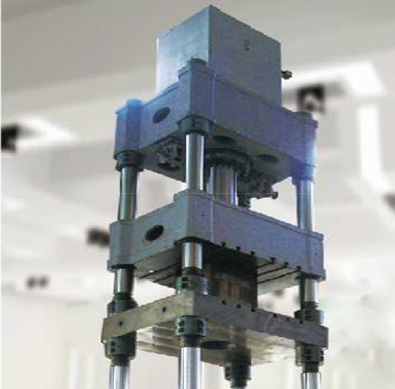

Artboard 1-4

Accessories and Auxiliary Solutions

Tianduan Press Co., Ltd. not only provides state-of-the-art hydraulic press machinery but also offers a range of accessories and auxiliary solutions designed to complement and enhance the capabilities of our equipment.

Die Sets

Our high-quality die sets are tailored to work seamlessly with our hydraulic presses. These precision-machined components ensure consistent and accurate forging results.

Control Systems

Tianduan's presses are equipped with advanced control systems, allowing for precise adjustment and real-time monitoring. We also offer upgrades for existing presses to incorporate these advanced control features.

Safety Features

Safety is paramount in industrial settings. We provide safety features and training to ensure that operators can work with our presses with confidence and security.

Maintenance and Support

Safety is paramount in industrial settings. We provide safety features and training to ensure that operators can work with our presses with confidence and security.

Manufacturing equipment for heavy artillery explosive shells is highly specialized and designed to meet stringent quality and precision standards. Here is a more detailed elaboration on some of the key manufacturing equipment used in the production of these shells:

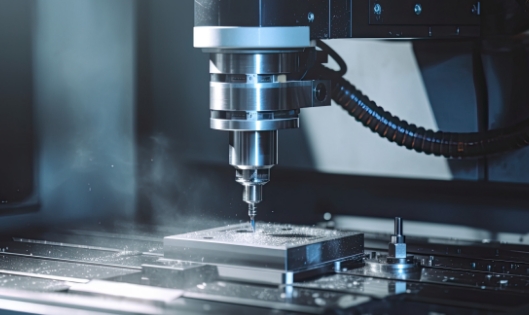

CNC Machines

CNC machines are essential for precision machining of shell casings. These machines are programmed to cut, shape, and drill metal components with extreme accuracy. CNC lathes and mills are commonly used to create the cylindrical casing of the artillery shell, ensuring tight tolerances for a secure fit.

Forging and Casting Equipment

Forging and casting processes are used to shape metal components of artillery shells. Forging involves heating metal to a high temperature and then hammering or pressing it into shape, resulting in components with excellent strength and structural integrity. Casting involves pouring molten metal into molds to create intricate and complex shapes, making it suitable for specific shell components.

Automated Assembly Lines:

Assembly lines are employed for the integration of various components that make up an artillery shell. These assembly lines are often automated to ensure consistency and efficiency. They include stations for inserting the explosive filler, fuses, and other internal components into the casing.

Explosive Filling Stations:

Artillery shells require precise filling of explosive materials into the warhead. Specialized explosive filling stations are used for this purpose. These stations are designed with controlled environments to prevent accidental detonation and to ensure uniform filling.

Quality Control and Inspection Equipment: Inspection and testing equipment are crucial for quality control during the manufacturing process. This equipment can include:

X-ray machines for checking the integrity of welded seams and internal components.

Ultrasonic testing equipment for identifying defects or weaknesses in the casing material.

Dimensional measuring tools for ensuring that components meet specific size and tolerance requirements.

High-speed cameras for monitoring and recording the manufacturing process for quality assurance.

Safety Equipment: Safety measures are paramount in the production of artillery shells. Equipment for safety may include specialized storage facilities for explosives, protective gear for workers, and safety protocols for handling hazardous materials. Additionally, facilities may have explosion-resistant structures to mitigate the impact of accidental detonations.

Environmental Compliance Systems: In the interest of environmental safety and compliance, manufacturing facilities may include equipment for treating wastewater and air emissions. This equipment can include filtration and purification systems to minimize the release of hazardous byproducts.

Control Systems: Advanced control systems are integrated into the manufacturing equipment to ensure precision, consistency, and data recording. These systems allow operators to monitor and adjust various parameters to meet the desired production standards.

Material Handling Equipment: Handling heavy and bulky materials is a key part of artillery shell production. Cranes, conveyors, and material handling equipment are used to move raw materials, components, and finished shells throughout the manufacturing process efficiently and safely.

Manufacturing artillery shells is a highly specialized and closely regulated process, and the equipment used is designed to meet stringent quality, safety, and precision standards. It's important to note that different countries and manufacturers may have variations in the equipment used based on their specific processes and requirements.

Decades of Experience

With over 65 years in the industry, we bring unmatched experience to the table. Our history is a testament to our ability to evolve and thrive in a rapidly changing manufacturing landscape.

Cutting-Edge Technology

Tianduan is dedicated to staying at the forefront of technological advancements. We invest heavily in research and development to ensure that our clients have access to the most innovative hydraulic press solutions.

Customization

We understand that each client's needs are unique. Our team works closely with you to provide tailored solutions that fit your specific requirements.

Global Reach

Tianduan's presence extends worldwide, allowing us to serve clients on a global scale. We have a network of partners, dealers, and service centers to support your needs, wherever you are.

Quality and Reliability

Our commitment to delivering high-quality, reliable hydraulic presses and components is unwavering. We are ISO 9001 certified, ensuring that our processes meet the highest industry standards.

Conclusion

Tianduan Press Co., Ltd. stands as a symbol of excellence and innovation in the field of shell forging, shell draw, and nosing press technology. Our experience since 1956, combined with our commitment to high-tech solutions, has made us a trusted partner for clients across the globe.

Whether you are in the defense industry seeking precision and durability or operating in any other sector with unique forging requirements, Tianduan is here to provide advanced solutions that enhance your manufacturing capabilities. Our hydraulic presses, equipped with cutting-edge technology, are designed to meet and exceed your expectations.

Experience the Tianduan advantage and explore the endless possibilities that shell forging technology offers. Contact us today to learn more about our products, discuss your specific needs, and take the first step towards revolutionizing your manufacturing processes. Your success is our commitment, and we are ready to be your partner on the journey to excellence.
